Code for marking, Part 2

Last time I showed how to add split cell values, something that may be useful when marking tests, where separators used for multiple answers.

This time I'll show how to highlight where a student's answers are incorrect. Note that the "Test" code is the same as last time, it's just calling a different subroutine (macro) called "ShowCharactersWhereDifferent". There's nothing to prevent you from running the previously shown "AddSplitCellValues" code at the same time. In fact, it may be a good idea. (Note the code works for non-split values like last time too)

Select the student's answers and run the "Test" code (correct answers are in cells to the left)


Sub Test()
    Dim rCell As Range
    Dim rRange As Range

    If TypeName(Selection) <> "Range" Then Exit Sub

    Set rRange = Selection

    For Each rCell In rRange.Cells

        Call ShowCharactersWhereDifferent(rCell, rCell.Offset(, 1), "|")

    Next rCell

    Set rRange = Nothing

End Sub

Sub ShowCharactersWhereDifferent(rCell1 As Range, rCell2 As Range, sSeparator As String)
    Dim tmp As Variant
    Dim tmp2 As Variant
    Dim lCount As Long
    Dim sTmpString As String
    Dim lStart As Long
    Dim lFinish As Long

    On Error Resume Next

    With rCell1

        .Font.ColorIndex = xlAutomatic

        tmp = Split(.Text, sSeparator)

        tmp2 = Split(rCell2.Text, sSeparator)

        For lCount = 0 To UBound(tmp)

            If lCount = 0 Then

                lStart = Len(sTmpString) + 1

                sTmpString = tmp(lCount)

                lFinish = lStart + Len(tmp(lCount)) - 1

            Else

                lStart = Len(sTmpString) + 2

                sTmpString = sTmpString & sSeparator & tmp(lCount)

                lFinish = lStart + Len(tmp(lCount))

            End If

            If tmp(lCount) <> tmp2(lCount) Then

                .Characters(Start:=lStart, Length:=Len(tmp(lCount))).Font.ColorIndex = 3

            End If

        Next lCount

    End With

    On Error GoTo 0
End Sub

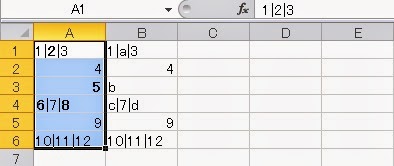

It's quite simple to adjust the code to do something different. Let's say you prefer to make the font bold instead of red.

Change this line
.Font.ColorIndex = xlAutomatic
to
.Font.Bold = False
and this line
.Characters(Start:=lStart, Length:=Len(tmp(lCount))).Font.ColorIndex = 3
to
.Characters(Start:=lStart, Length:=Len(tmp(lCount))).Font.Bold = True


Or how about strikethough?

Change this line
.Font.ColorIndex = xlAutomatic
to
.Font.Strikethrough = False
and this line
.Characters(Start:=lStart, Length:=Len(tmp(lCount))).Font.ColorIndex = 3
to
.Characters(Start:=lStart, Length:=Len(tmp(lCount))).Font.Strikethrough = True


See you next time.
